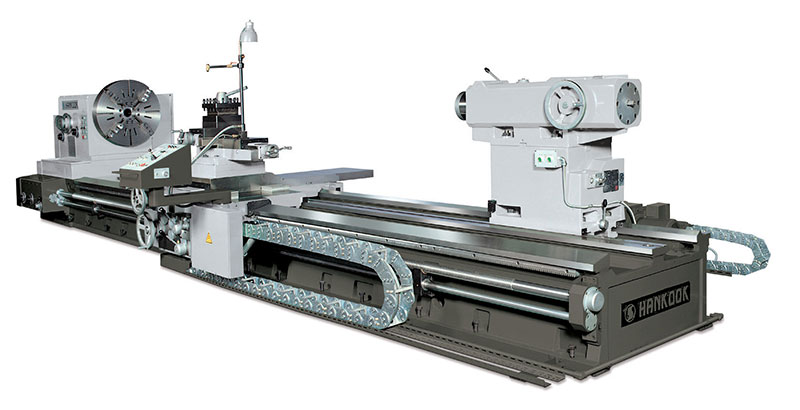

KM III 1700

AĞIR TİP MANUEL TORNA

OTHER

Machine Weight

kg

22600

FENERMİLİ

Fenermili delik içi çapı	mm	105
Fenermili konik tipi		#120
Fenermili devri	devir / dk	6~375/4~250

ARABA

Maksimum araba hareketi

mm

1400

İLERLEME

X eksen hızlı hareket	mm/dönüş	56
Z eksen hızlı hareket	mm/dönüş	56
Metrik diş çekme	mm/adım	42
İnç diş çekme	TPI	32
Modül diş çekme	mm	27
D.P. diş çekme	TPI	34

PUNTA

Pinyon çapı	mm	270
Pinyon hareketi	mm	250

MOTORLAR

Ana tabla motoru	kw	4P-30
Araba için hızlı hareket motoru	kw	4P-1,5
Punta için hızlı hareket motoru	kw	4P-0,75

YATAK

Yatak genişliği	mm	1150
Yatak uzunluğu	mm	10430

STANDARD ACCESSORY

OPTIONAL ACCESSORIES
